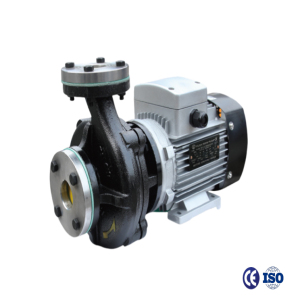

YS-36 Series Pump

YS-36 Series Pump
Non-standard customization

High-flow centrifugal pumps

It is suitable for mold temperature control, roller temperature control, reactor jacket temperature control, condensate recovery, food equipment, cleaning equipment, template temperature control, barrel temperature control, cold and heat exchange system, etc.

CIRCULATION MEDIUM

Water, glycol, alcohol, thermal oil, hydrocarbon solution, silicone oil, edible oil and other liquids without particles and fibers.

WORKING CONDITION

Thermal Conductivity Water: +5℃ ~ +160℃

Thermal Conductivity Oil: +5℃ ~ +200℃

Glycol/Silicone Oil: -30℃ ~ +180℃

Working Temperature: -5℃ ~ +40℃

Maximum Elevation: 1000m

Maximum Working Pressure: 10bar

DETAIL

Download

Detailed Description

PRODUCT INTRODUCTION

YS-36 Series Hot Water/Hot Oil Centrifugal Pumps are designed to transfer and circulate liquids free of particles and fibers (such as water, ethylene glycol, thermal oil, etc.). They feature simple installation, high-temperature resistance, high flow capacity, and wide applicability. Application Areas: Mold temperature control, roller temperature control, reactor jacket temperature control, condensate recovery, food processing equipment, cleaning equipment, compressors, and related industries.

TECHNICAL PARAMETER

Model	Diameter		Motor					Performance Parameter		Pump Weight (kg)
	Inlet	Outlet	Power (KW)	(Hp)	Voltage (V)	Frequency (Hz)	Speed (r/min)	Max Head(m)	Max Flow Rate (l/min)
YS-36B	DN32	DN25	0.75	1	3Ø-380	50	2760	25	135/112	17.5
YS-36B-S					1Ø-220
YS-36C	DN32	DN25	1.5	2	3Ø-380	50	2760	30	200/150	21

The above characteristic testing is based on the water transferring with the normal speed under 20 degrees.character'serror is about 10%.The pump characters change according to the difference of the liquid mediums' proportion and density.

The letter "S" means single phase.
