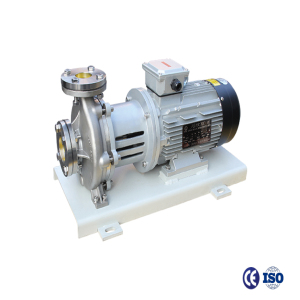

CMP Series Pump

CMP Series Pump
Non-standard customization

Chemical Magnetic Drive Centrifugal pump

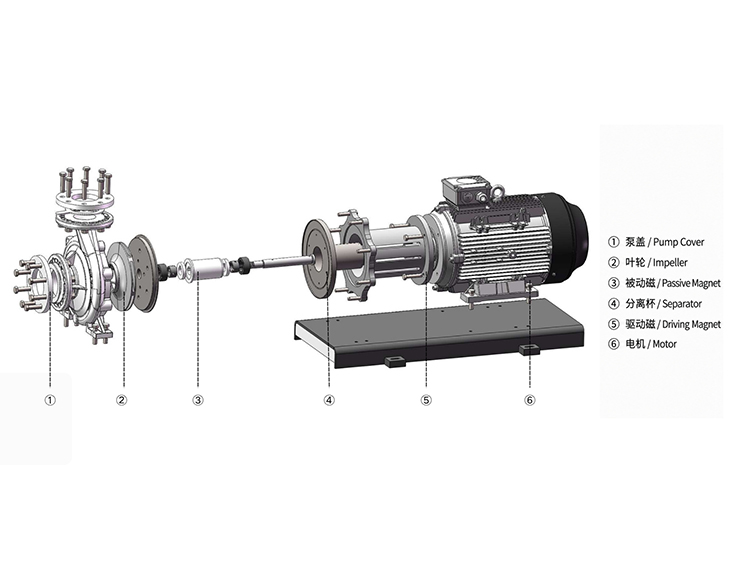

This magnetic drive centrifugal pump delivers energy-efficient, leak-free chemical fluid circulation for pharmaceutical, electroplating and wastewater industries. Contact-free magnetic torque transmission avoids shaft seal failure. Compact structure fits limited space, supporting long-term safe delivery of flammable and high-purity chemical media.

CIRCULATION MEDIUM

Water, glycol, alcohol, heat transfer oil, hydrocarbon solution, silicone oil, glacier coolant, gasoline and other liquids without particles and fibers.

WORKING CONDITION

Medium Temperature: -196℃ ~ +400℃

Ambient Temperature: -50℃ ~ +70℃

Maximum Elevation: 5000m

Maximum Working Pressure: 40bar

DETAIL

Download

Detailed Description

CMP Series Pump

It is suitable for high-temperature mold temperature control, high and low temperature test instruments, semiconductor precision temperature control, chemical equipment, template temperature control, ultrasonic cleaning equipment, high-end printing and dyeing equipment, negative pressure distillation, metering and conveying skid-mounting, TCU temperature control system, hydrogen production machine, ozone generator, etc.

TECHNICAL PARAMETER

Model	Diameter		Motor					Performance Parameter		Pump Weight (kg)
Model	Inlet	Outlet	Power (KW)	(Hp)	Voltage (V)	Frequency (Hz)	Speed (r/min)	Rated Head(m)	Rated Capacity (m³/h)	Pump Weight (kg)
CMP-100	DN32	DN25	0.75	1	3Ø-380	50	2760	15	6	29
CMP-100	DN32	DN25	0.75	1	1Ø-220	50	2760	15	6	29
CMP-200	DN32	DN25	1.5	2	3Ø-380	50	2760	18	8	31
CMP-300	DN50	DN32	2.2	3	3Ø-380	50	2760	21	10	45
CMP-400	DN50	DN32	3	4	3Ø-380	50	2760	22	12	46
CMP-500	DN50	DN40	4	5	3Ø-380	50	2760	25	25	60
CMP-600	DN50	DN40	4.5	6	3Ø-380	50	2760	30	25	65
CMP-750	DN50	DN40	5.5	7.5	3Ø-380	50	2760	35	25	88
CMP-1000	DN50	DN40	7.5	10	3Ø-380	50	2760	35	32	120
CMP-1500	DN50	DN50	11	15	3Ø-380	50	2760	35	40	135
CMP-2000	DN80	DN65	15	20	3Ø-380	50	2760	40	80	150

The above characteristic testing is based on the water transferring with the normal speed under 20 degrees.character'serror is about 10%.The pump characters change according to the difference of the liquid mediums' proportion and density.
