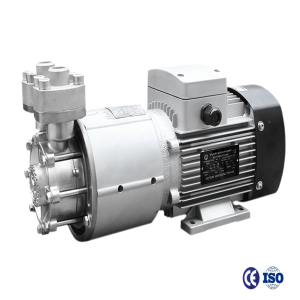

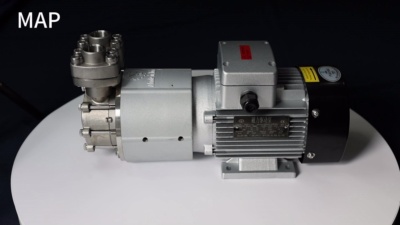

MAP Series Pump

MAP Series Pump
Non-standard customization

Stainless steel vortex magnetic pumps

Applicable to TCU equipment, semiconductor cooling equipment, high temperature mold equipment, high and low temperature experimental instruments, chemical equipment, template temperature control, high-end cleaning equipment and so on.

CIRCULATION MEDIUM

Water, ethylene glycol, alcohol, thermal oil, hydrocarbon solution, silicone oil, refrigerant, gasoline, high purity reagent and other liquids without particles and fibers.

WORKING CONDITION

Medium Temperature: -196℃ ~ +350℃

Ambient Temperature: -50℃ ~ +70℃

Maximum Elevation: 5000m

Maximum Working Pressure: 40bar

DETAIL

Download

Detailed Description

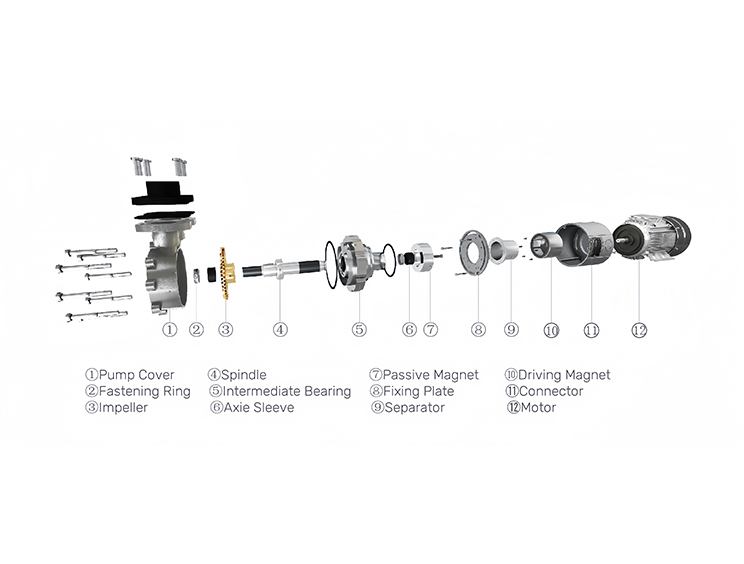

PRODUCT INTRODUCTION

MAP magnetically driven high/low-temperature Vortex Pumps (regenerative turbine pumps/peripheral turbine pumps) feature stainless steel wetted parts and magnetic transmission static sealing technology. Compact in size, they operate with low vibration, low noise, and zero leakage, capable of conveying media such as water, thermal oil, and ethylene glycol that are free of particles or fibers. Capable of handling media temperatures ranging from -196°C to +350°C, it transforms dynamic seals into static seals through magnetic conduction between the isolation cover and magnets. This ensures stable performance under extreme temperature conditions. Widely applied in new energy, semiconductor, laboratory equipment, food processing, chemical engineering, temperature control, general machinery, environmental protection, pharmaceuticals, refrigeration/cryogenic, and other industries.

TECHNICAL PARAMETER

Model	Diameter		Motor					Performance Parameter		Pump Weight (kg)
	Inlet	Outlet	Power (KW)	(Hp)	Voltage (V)	Frequency (Hz)	Speed (r/min)	Max Head (m)	Max Flow Rate (l/min)
MAP-370	DN15	DN15	0.37	0.5	3Ø-380	50	2760	15	24	10
MAP-370S					1Ø-220
MAP-500	DN15	DN15	0.5	0.7	3Ø-380	50	2760	30	28	11
MAP-500S					1Ø-220
Map-500H	DN15	DN15	0.5	0.7	3Ø-380	50	2760	60	30	10
MAP-500HS					1Ø-220
MAP-750	DN20	DN20	0.75	1	3Ø-380	50	2760	49	27	14
MAP-750S					1Ø-220
MAP-750H	DN15	DN15	0.75	1	3Ø-380	50	2760	80	40	10
MAP-750HS					1Ø-220
MAP-1100	DN20	DN20	1.1	1.5	3Ø-380	50	2760	61	45	19
MAP-1100S					1Ø-220
MAP-1500	DN25	DN25	1.5	2	3Ø-380	50	2760	70	72	24
MAP-2200	DN25	DN25	2.2	3	3Ø-380	50	2760	81	73	29
MAP-3000	DN25	DN25	3	4	3Ø-380	50	2760	78	135	41
MAP-4000	DN32	DN32	4	5	3Ø-380	50	2760	82	177	49

The above characteristic testing is based on the water transferring with the normal speed under 20 degrees.character'serror is about 10%.The pump characters change according to the difference of the liquid mediums' proportion and density.

The letter "S" means single phase.

wz1： Stainless steel vortex magnetic pumps

wz2： Non-standard customization
