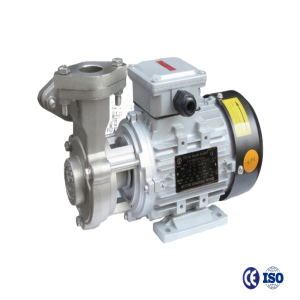

YS-13 Series Pump

YS-13 Series Pump
Non-standard customization

Stainless steel regenerative pump

This stainless steel regenerative pump adopts full sealless magnetic coupling structure to completely avoid medium leakage. All wetted stainless steel parts resist mild corrosive liquids and deliver stable high-pressure flow. Low vibration operation reduces maintenance workload for long-cycle industrial production.

CIRCULATION MEDIUM

Liquids that do not contain particles or fibers, such as water, ethylene glycol, alcohol, thermal oil, hydrocarbon solution, silicone oil, etc.

WORKING CONDITION

Thermal Conductivity Water: +5℃ ~ +160℃

Thermal Conductivity Oil: +5℃ ~ +200℃

Glycol/Silicone Oil: -30℃ ~ +180℃

Working Temperature: -5℃ ~ +40℃

Maximum Elevation: 1000m

Maximum Working Pressure: 10bar

DETAIL

Download

Detailed Description

YS-13 Series Pump

Suitable for heat exchange systems, mold temperature control, ultrasonic cleaning, testing instruments, machine tool cooling, barrel temperature control, etc.

TECHNICAL PARAMETER

Model	Diameter		Motor					Performance Parameter		Pump Weight (kg)
	Inlet	Outlet	Power(KW)	(Hp)	Voltage(V)	Frequency (Hz)	Speed (r/min)	Max/Rated Head(m)	Max Capacity (l/min)
YS-13	DN20	DN20	0.25	0.33	3Ø-380	50	2760	15/12	30	9
YS-13S					1Ø-220
YS-13A	DN20	DN20	0.37	0.5	3Ø-380	50	2760	28/22	42	9
YS-13A-S					1Ø-220

The above characteristic testing is based on the water transferring with the normal speed under 20 degrees.character'serror is about 10%.The pump characters change according to the difference of the liquid mediums' proportion and density.

The letter "S" means single phase.
