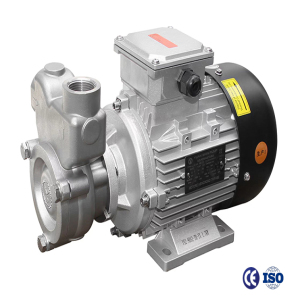

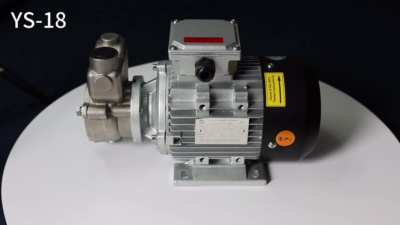

YS-18 Series Pump

YS-18 Series Pump
Non-standard customization

Stainless steel vortex pumps

Suitable for mould temperature control, boiler water replenishment, ultrasonic cleaning, food equipment, ozone generator, high and low temperature detection and so on.

CIRCULATION MEDIUM

Water, Ethylene glycol, Alcohol, Heat transfer oil, hydrocarbon solution, silicone oil, cooking oil and other liquids without particles and fibers.

WORKING CONDITION

Thermal Conductivity Water: +5℃ ~ +160℃

Thermal Conductivity Oil: +5℃ ~ +200℃

Glycol/Silicone Oil: -30℃ ~ +180℃

Working Temperature: -5℃ ~ +40℃

Maximum Elevation: 1000m

Maximum Working Pressure: 10bar

DETAIL

Download

Detailed Description

PRODUCT INTRODUCTION

The YS-18 Series Stainless Steel Vortex Pump (Regenerative Turbine Pump/Peripheral Turbine Pump) is an exceptionally compact high-pressure pump designed to transfer circulating media consisting of liquids free of particles or fibers (water, thermal oil). Featuring space-saving installation, refined appearance, high strength, precision fit, high-temperature resistance, and smooth operation, these pumps are widely used in small precision mold temperature controllers, semiconductor manufacturing, chemical processing, general machinery, new energy, laboratory equipment, and high/low-temperature testing industries.

TECHNICAL PARAMETER

Model	Diameter		Motor					Performance Parameter		Pump Weight (kg)
Model	Inlet	Outlet	Power (KW)	(Hp)	Voltage (V)	Frequency (Hz)	Speed (r/min)	Max Head (m)	Max Flow Rate (l/min)	Pump Weight (kg)
YS-18A	G1"	G3/4"	1.1	1.5	3Ø-380	50	2760	80	60	15.5
YS-18B	G1.2"	G1"	1.7	2.3	3Ø-380	50	2760	120	108	20
YS-18C	G1.5"	G1.2"	2.5	3.3	3Ø-380	50	2760	130	150	25.5

The above characteristic testing is based on the water transferring with the normal speed under 20 degrees.character'serror is about 10%.The pump characters change according to the difference of the liquid mediums' proportion and density.
