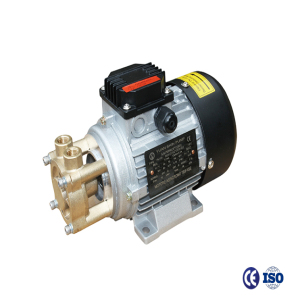

YS-W Series Pump

YS-W Series Pump
Non-standard customization

Mini vortex pumps

Suitable for medical sterilizers, steam generators, high and low temperature testing instruments, welding machine cooling, small cooling circulation systems, etc.

CIRCULATION MEDIUM

Liquids such as water, ethylene glycol, alcohol, heat transfer oil, hydrocarbon solutions, and silicone oil that do not contain particles or fibres.

WORKING CONDITION

Thermal Conductivity Water: +5℃ ~ +160℃

Thermal Conductivity Oil: +5℃ ~ +200℃

Glycol/Silicone Oil: -30℃ ~ +180℃

Working Temperature: -5℃ ~ +40℃

Maximum Elevation: 1000m

Maximum Working Pressure: 10bar

DETAIL

Download

Detailed Description

PRODUCT INTRODUCTION

YS-W Series Mini Vortex Pumps (Regenerative Turbine Pumps/Peripheral Pumps) are high-temperature medium circulation vortex pumps designed for piping systems. They transport and circulate liquids free of particles and fibers, such as water and heat transfer oil. These pumps feature space-saving installation, elegant design, high strength, precise fit, high-temperature resistance, and smooth operation.

TECHNICAL PARAMETER

Model	Diameter		Motor					Performance Parameter		Pump Weight (kg)
	Inlet	Outlet	Power (KW)	(Hp)	Voltage (V)	Frequency (Hz)	Speed (r/min)	Max/Rated Head (m)	Max Capacity (l/min)
YS-10A	G1/4"	G1/4"	0.16	0.21	3Ø-380	50	2760	36/25	10	4.5
YS-10A-S					1Ø-220
YS-10W	G1/4"	G1/4"	0.16	0.21	1Ø-380	50	2760	36/25	10	4.5
					1Ø-220
YS-10B	G1/2"	G1/2"	0.16	0.21	3Ø-380	50	2760	20/12	20	5.5
YS-10B-S					1Ø-220
YS-16W	G1/2"	G1/2"	0.37	0.5	1Ø-380	50	2760	45/25	25	7
					1Ø-220
YS-16A	G1/2"	G1/2"	0.37	0.5	3Ø-380	50	2760	45/25	25	7
YS-16A-S					1Ø-220

The above characteristic testing is based on the water transferring with the normal speed under 20 degrees.character'serror is about 10%.The pump characters change according to the difference of the liquid mediums' proportion and density.

The letter "S" means single phase.

The letter "W" means big fan.
