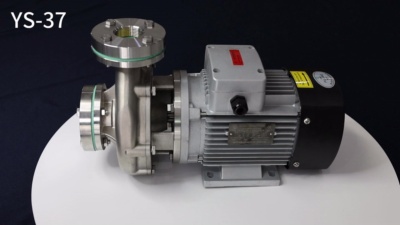

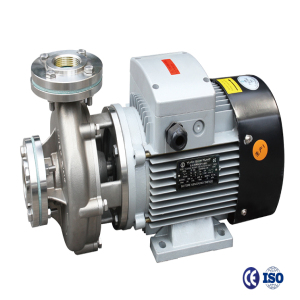

YS-37 Series Pump

YS-37 Series Pump
Non-standard customization

Stainless steel high flow centrifugal pumps

Suitable for mould temperature control, reactor jacket temperature control, condensate recovery, food equipment, chemical equipment, template temperature control, barrSuitable for mould temperature control, reactor jacket temperature control, condensate recovery, food equipment, chemical equipment, template temperature control, barrel temperature control, cold and hot exchange system and so on.el temperature control, cold and hot exchange system and so on.

CIRCULATION MEDIUM

Water, ethylene glycol, alcohol, thermal oil, hydrocarbon solution, silicone oil, edible oil and other liquids without particles and fibers.

WORKING CONDITION

Thermal Conductivity Water: +5℃ ~ +160℃

Thermal Conductivity Oil: +5℃ ~ +200℃

Glycol/Silicone Oil: -30℃ ~ +180℃

Working Temperature: -5℃ ~ +40℃

Maximum Elevation: 1000m

Maximum Working Pressure: 10bar

DETAIL

Download

Detailed Description

PRODUCT INTRODUCTION

YS-37 Series Stainless Steel High-Flow Centrifugal Pumps are designed for transferring and circulating liquids free of particles or fibers (such as water, ethylene glycol, thermal oil, silicone oil, etc.). All wetted components are constructed from SUS304 stainless steel, offering corrosion resistance, easy installation, high-temperature tolerance, high flow rates, and broad applicability. Applications include: Heat exchange systems Template temperature control Mold temperature control Condensate recovery Chemical processing equipment and related industries.

TECHNICAL PARAMETER

Model	Diameter		Motor					Performance Parameter		Pump Weight (kg)
Model	Inlet	Outlet	Power (KW)	(Hp)	Voltage (V)	Frequency (Hz)	Speed (r/min)	Max Head(m)	Max Flow Rate (m³/h)	Pump Weight (kg)
YS-37A	DN32	DN25	0.75	1	3Ø-380	50	2900	18	7	18.6
YS-37B	DN32	DN25	1.5	2	3Ø-380	50	2900	23	12	20.5
YS-37C	DN50	DN32	2.2	3	3Ø-380	50	2900	30	16	22.6
YS-37D	DN50	DN32	2.5	3.5	3Ø-380	50	2900	34	24	28.2
YS-37E	DN50	DN50	3.7	5	3Ø-380	50	2900	33	23	60.5
YS-37F	DN50	DN50	5.5	7.5	3Ø-380	50	2900	34	50	71.9
YS-37G	DN50	DN50	7.5	10	3Ø-380	50	2900	38	58	80.5

The above characteristic testing is based on the water transferring with the normal speed under 20 degrees.character'serror is about 10%.The pump characters change according to the difference of the liquid mediums' proportion and density.
