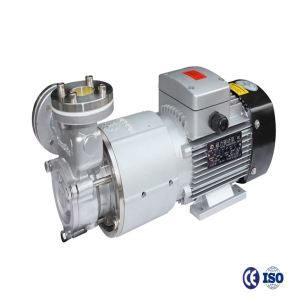

MAP-18 Series Pump

MAP-18 Series Pump
Non-standard customization

Stainless steel Magnetic Drive Regenerative Turbine Pumps

It is suitable for high-temperature mold temperature control, high and low temperature test instruments, semiconductor precision temperature control, chemical equipment, template temperature control, ultrasonic cleaning equipment, high-end printing and dyeing equipment, negative pressure distillation, metering and conveying skid-mounting, TCU temperature control system, hydrogen production machine, ozone generator, etc.

CIRCULATION MEDIUM

Water, ethylene glycol, alcohol, thermal oil, hydrocarbon solution, silicone oil, glacier refrigerant, gasoline, dye, chemical solution, liquid nitrogen, electronic fluoride liquid, freon and other liquids without particles and fibers.

WORKING CONDITION

Medium Temperature: -196℃ ~ +400℃

Ambient Temperature: -50℃ ~ +70℃

Maximum Elevation: 5000m

Maximum Working Pressure: 40bar

DETAIL

Download

Detailed Description

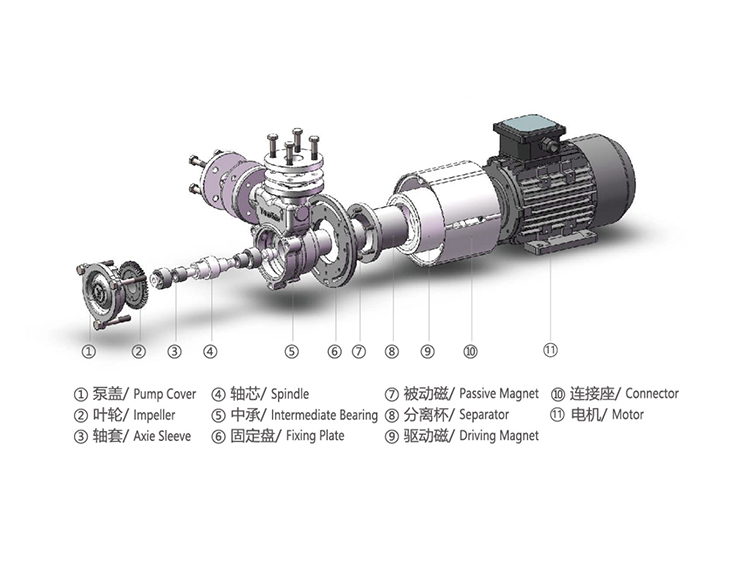

PRODUCT INTRODUCTION

MAP-18 Series Stainless Steel Magnetically Driven High/Low Temperature Vortex Pumps (regenerative turbine pump/peripheral turbine pump) feature stainless steel moving parts and incorporate gas-liquid mixing capabilities. Designed for safe and stable operation under high-temperature conditions, they accommodate media temperatures ranging from -196°C to +350°C. Utilizing a shaftless, magnetically driven design that replaces dynamic seals with static seals, these pumps ensure reliable and stable performance in cryogenic and high-temperature environments.Widely applied in new energy, semiconductor, laboratory equipment, food processing, chemical manufacturing, temperature control, general machinery, environmental protection, pharmaceuticals, refrigeration/cryogenic, and other industries.

TECHNICAL PARAMETER

Model	Diameter		Motor					Performance Parameter		Pump Weight (kg)
Model	Inlet	Outlet	Power (KW)	(Hp)	Voltage (V)	Frequency (Hz)	Speed (r/min)	Max/Rated Head(m)	Max Capacity (m³/h)	Pump Weight (kg)
MAP-18	DN25	DN20	0.75	1	3Ø-380	50	2760	55/35	3	17
MAP-18S	DN25	DN20	0.75	1	1Ø-220	50	2760	55/35	3	17
MAP-18A	DN25	DN20	1.1	1.5	3Ø-380	50	2760	80/55	3.9	18.5
MAP-18AS	DN25	DN20	1.1	1.5	1Ø-220	50	2760	80/55	3.9	18.5
MAP-18B	DN32	DN25	1.5	2	3Ø-380	50	2760	90/60	5.4	26
MAP-18C	DN40	DN32	2.2	3	3Ø-380	50	2760	100/70	7.2	29
MAP-18D	DN40	DN32	3	4	3Ø-380	50	2900	100/65	9.6	37
MAP-18E	DN50	DN40	4	5.5	3Ø-380	50	2900	62/40	11.7	53
MAP-18F	DN50	DN40	5.5	7.5	3Ø-380	50	2900	65/50	13.5	55

The above characteristic testing is based on the water transferring with the normal speed under 20 degrees.character'serror is about 10%.The pump characters change according to the difference of the liquid mediums' proportion and density.
