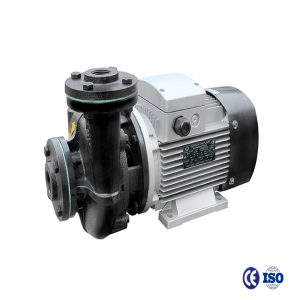

YS-35 Series Pump

YS-35 Series Pump
Non-standard customization

Cast iron high-flow centrifugal pumps

Suitable for heat exchange systems, mold temperature control, ultrasonic cleaning, testing instruments, machine tool cooling, barrel temperature control, etc.

CIRCULATION MEDIUM

Water, glycol, alcohol, thermal oil, hydrocarbon solution, silicone oil, edible oil and other liquids without particles and fibers.

WORKING CONDITION

Thermal Conductivity Water: +5℃ ~ +160℃

Thermal Conductivity Oil: +5℃ ~ +200℃

Glycol/Silicone Oil: -30℃ ~ +180℃

Working Temperature: -5℃ ~ +40℃

Maximum Elevation: 1000m

Maximum Working Pressure: 10bar

DETAIL

Download

Detailed Description

PRODUCT INTRODUCTION

YS-35 Series Hot Water/Hot Oil Centrifugal Pumps are designed to transfer and circulate liquids free of particles and fibers (such as water, ethylene glycol, thermal oil, etc.). They feature simple installation, high-temperature resistance, high flow capacity, and broad applicability. Application Areas: Heat exchange systems, barrel temperature control, mold temperature control, roller temperature control, reactor jacket temperature control, condensate recovery, food processing equipment, cleaning equipment, compressors, and related industries.

TECHNICAL PARAMETER

Model	Diameter		Motor					Performance Parameter		Pump Weight (kg)
	Inlet	Outlet	Power (KW)	(Hp)	Voltage (V)	Frequency (Hz)	Speed (r/min)	Max Head (m)	Max Flow Rate (l/min)
YS-35A	DN25	DN25	0.37	0.5	3Ø-380	50	2760	15	110/80	18
YS-35A-S					1Ø-220
YS-35B	DN40	DN40	0.75	1	3Ø-380	50	2760	20	165/133	19
YS-35B-S					1Ø-220
YS-35B-SS					3Ø-380
YS-35C	DN50	DN40	1.5	2	3Ø-380	50	2760	24	235/167	26.5
YS-35C-SS
YS-35D	DN50	DN40	2.2	3	3Ø-380	50	2760	30	315/233	29.5
YS-35D-SS
YS-35E	DN50	DN40	3.7	5	3Ø-380	50	2760	45	367/267	64
YS-35F	DN50	DN40	5.5	7.5	3Ø-380	50	2760	55	500/370	78
YS-35G	DN65	DN50	7.5	10	3Ø-380	50	2900	60	680/400	81

The above characteristic testing is based on the water transferring with the normal speed under 20 degrees.character'serror is about 10%.The pump characters change according to the difference of the liquid mediums' proportion and density.

The letter "SS" means stainless steel.

The letter "S" means single phase.
