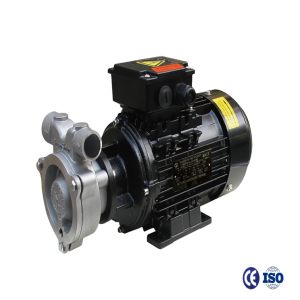

YS-12 Series Pump

YS-12 Series Pump
Non-standard customization

Stainless steel high-pressure pump

Suitable for mould temperature control, boiler water replenishment, ultrasonic cleaning, food machinery, ozone generators, high and low temperature testing, etc.

CIRCULATION MEDIUM

Liquids such as water, ethylene glycol, alcohol, heat transfer oil, hydrocarbon solutions, and silicone oil that do not contain particles or fibres.

WORKING CONDITION

Thermal Conductivity Water: +5℃ ~ +160℃

Thermal Conductivity Oil: +5℃ ~ +200℃

Glycol/Silicone Oil: -30℃ ~ +180℃

Working Temperature: -5℃ ~ +40℃

Maximum Elevation: 1000m

Maximum Working Pressure: 15bar

DETAIL

Download

Detailed Description

PRODUCT INTRODUCTION

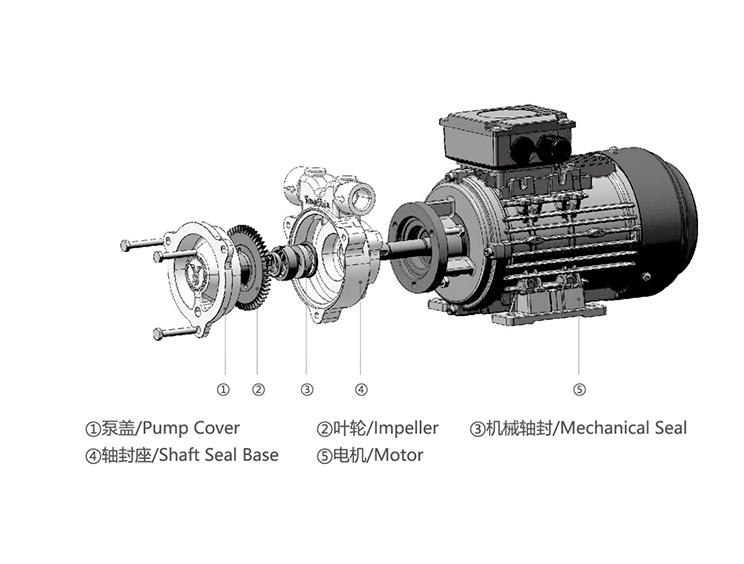

YS-12 Series Stainless Steel High-Pressure Vortex Pump (Regenerative Turbine Pump/Peripheral Turbine Pump) features stainless steel wetted parts for corrosion resistance. It offers space-saving installation, refined appearance, high strength, precise fit, high-temperature tolerance, and smooth operation. Applications include mold temperature control, steam generators, boiler makeup water, and high-pressure makeup water systems.

TECHNICAL PARAMETER

Model	Diameter		Motor					Performance Parameter		Pump Weight (kg)
Model	Inlet	Outlet	Power (KW)	(Hp)	Voltage (V)	Frequency (Hz)	Speed (r/min)	Max/Rated Head(m)	Max Capacity (l/min)	Pump Weight (kg)
YS-12A	G3/4"	G1/2"	0.37	0.5	3Ø-380	50	2760	100/70	15	11
YS-12B	G3/4"	G1/2"	0.75	1	3Ø-380	50	2760	130/100	20	12

The above characteristic testing is based on the water transferring with the normal speed under 20 degrees.character'serror is about 10%.The pump characters change according to the difference of the liquid mediums' proportion and density.
